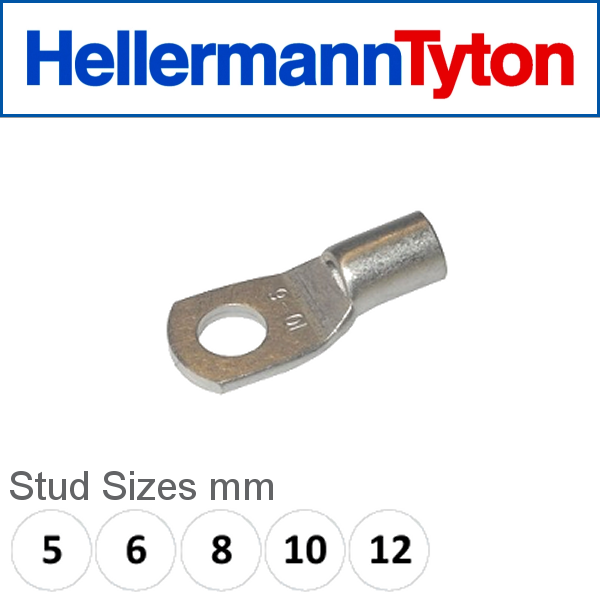

10mm² Copper Lug M12 Per Unit

CL10-12

$0.43
In Stock

Stud Size
Buy In Bulk & Save!
Buy 100 or more: Pay $0.39

Copper Compression Lug 10mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
10mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL10-5 M5 4.7 12 10 27
CL10-6 M6 4.7 12 10 27
CL10-8 M8 4.7 14 10 29
CL10-10 M10 4.7 15 10 32
CL10-12 M12 4.7 18 10 38



(CL10)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL10
