120mm² Copper Lug M16 Per Unit

CL120-16

$5.76
In Stock

Stud Size
Buy In Bulk & Save!
Buy 25 or more: Pay $5.19

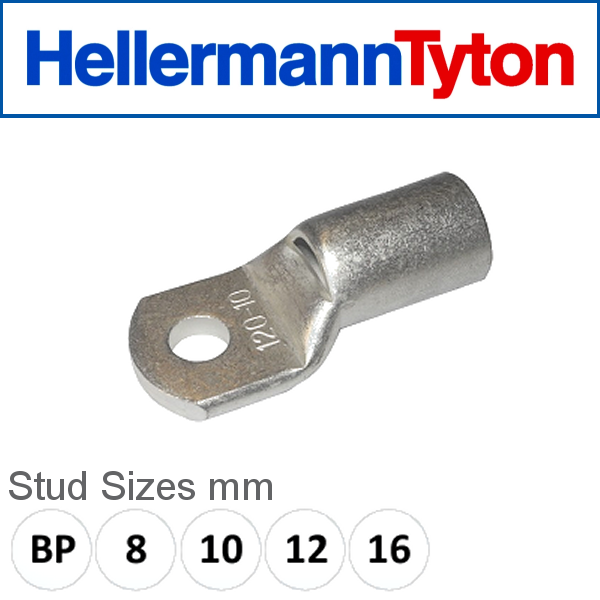

Copper Compression Lug 120mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
120mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL120-Blank BP 15.6 30 30 64
CL120-8 M8 15.6 30 30 64
CL120-10 M10 15.6 30 30 64
CL120-12 M12 15.6 30 30 64
CL120-16 M16 15.6 30 30 72



(CL120)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL120
