150mm² Copper Lug M16 Per Unit

CL150-16

$7.58
In Stock

Stud Size
Buy In Bulk & Save!
Buy 20 or more: Pay $6.82

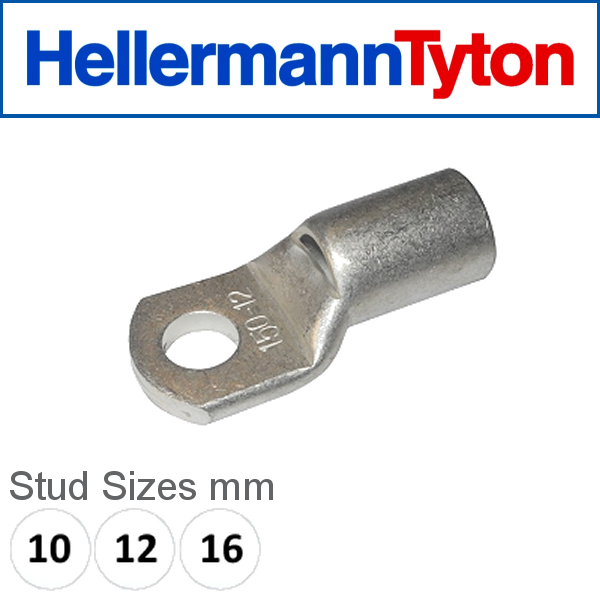

Copper Compression Lug 150mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
150mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL150-10 M10 16.7 32 30 71
CL150-12 M12 16.7 32 30 75
CL150-16 M16 16.7 32 30 75



(CL150)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL150
Brand HellermannTyton
