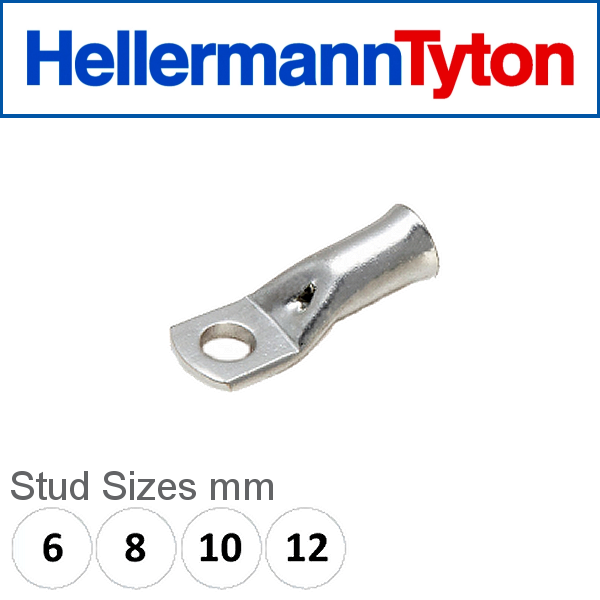

16mm² Bell Mouth Copper Lug M6 Per Unit

CL16-6BM

$0.66
In Stock

Stud Size
Buy In Bulk & Save!
Buy 50 or more: Pay $0.59

Copper Compression Lug Bell Mouth 16mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
16mm² Copper Lugs Bell Mouth - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL16-6 M6 5.5 11 19 39
CL16-8 M8 5.5 14 19 39
CL16-10 M10 5.5 16 19 41
CL16-12 M12 5.5 18 19 46



(CL16BM)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL16BM
Brand HellermannTyton
