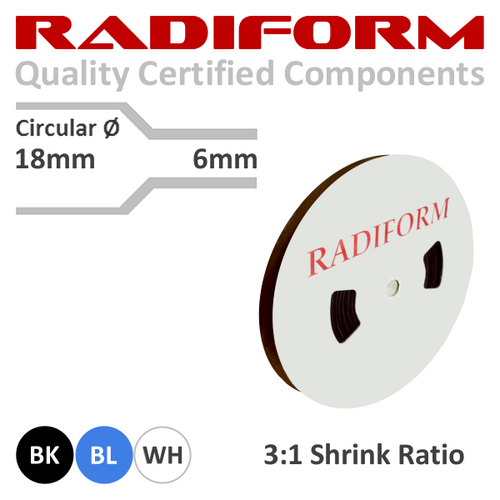

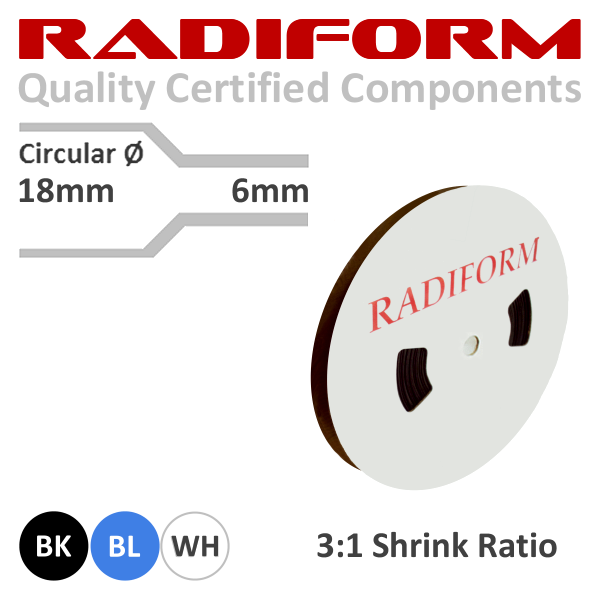

18-6mm Thin Wall Flame Retarded Heatshrink (3:1) Black 50m Reel

SCGH18-6-BK

$149.87
In Stock

Choose Colour

Product: 18mm ID to 6mm ID 50m Reels
Heat Shrink - SCGH Thin Wall Flame Retarded Tube

Applications:
Light duty wire harnessing for electrical and electronic applications.Provides electrical insulation and protection for in-line components. Bundles wires and cables. Used as strain relief for electrical wire connection. Bus bar insulation for switchgear. Colour coding for wires, cables, terminals and components.

General:

  • Shrink ratio 3:1
  • Flame retarded and self extinguishing
  • Rated for up to 600 volts
  • Resistance to chemical, copper corrosion and fungus
  • UV stabilised
  • Meets ROHS compliance
Heat Shrink Tube Circular Dimensions
All Dim mm
 Part Number
As Supplied After Recovery Applicable
Range
Inside Ø Inside Ø Wall
SCGH1.5 1.5 ≤ 0.50 0.45 ± 0.10 0.6 ~ 1.4 Ø
SCGH6 6.0 ≤ 2.00 0.65 ± 0.10 2.1 ~ 5.8 Ø
SCGH9 9.0 ≤ 3.00 0.75 ± 0.15 3.1 ~ 8.9 Ø
SCGH12 12.0 ≤ 4.00 0.75 ± 0.15 4.2 ~ 11.8 Ø
SCGH18 18.0 ≤ 6.00 0.85 ± 0.15 6.2 ~ 17.7 Ø
SCGH24 24.0 ≤ 8.00 1.00 ± 0.20 8.3 ~ 23.6 Ø
SCGH30 30.0 ≤ 10.00 1.15 ± 0.20 10.3 ~ 29.6 Ø



Heat Shrink Tube Lay Flat Dimensions
Part Number Lay Flat ID Part Number Lay Flat ID
SCGH6 10mm SCGH18 28mm
SCGH9 15mm SCGH24 37mm
SCGH12 18mm



Heat Shrink Part Numbers for Copper Lug and Link Barrel Insulation
Lug or Link to Suit Cable Size Heat Shrink Part Number
1.5mm² SCGH6
2.5mm² SCGH6
4mm² SCGH6
6mm² SCGH9
10mm² SCGH9
16mm² SCGH12
25mm² SCGH12
35mm² SCGH18
50mm² SCGH18
70mm² SCGH18
95mm² SCGH24
120mm² SCGH24
150mm² SCGH24



Heat Shrink Part Numbers for Bus Bar Insulation
Width Thickness
3.2mm 4.8mm 6.4mm 9.5mm 12.7mm
12mm SCGH12 SCGH18
19mm SCGH24 SCGH24 SCGH24 SCGH24 SCGH24
25mm SCGH24 SCGH24 SCGH24



(SCGH18)

SKU SCGH18
Brand RADIFORM
