185mm² Copper Lug M16 Per Unit

CL185-16

$9.23
In Stock

Stud Size
Buy In Bulk & Save!
Buy 20 or more: Pay $8.31

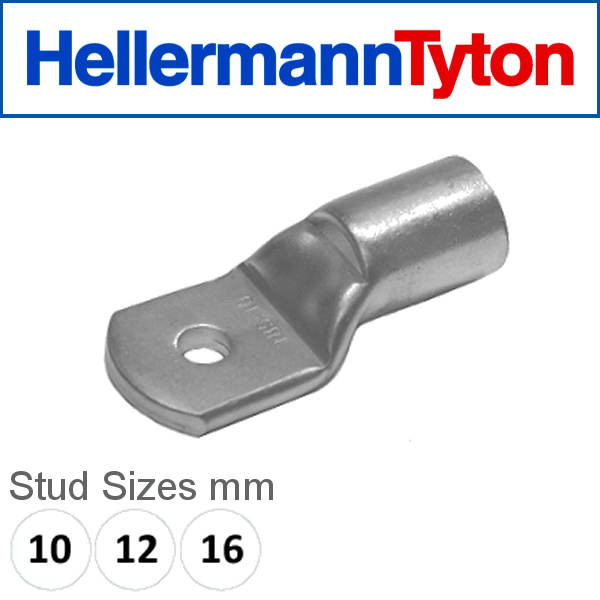

Copper Compression Lug 185mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
185mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL185-10 M10 18.4 36 32 74
CL185-12 M12 18.4 36 32 79
CL185-16 M16 18.4 36 32 79



(CL185)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL185
Brand HellermannTyton
