2.5mm² Copper Lug M8 Per Unit

CL2.5-8

$0.14
In Stock

Stud Size
Buy In Bulk & Save!
Buy 100 or more: Pay $0.13

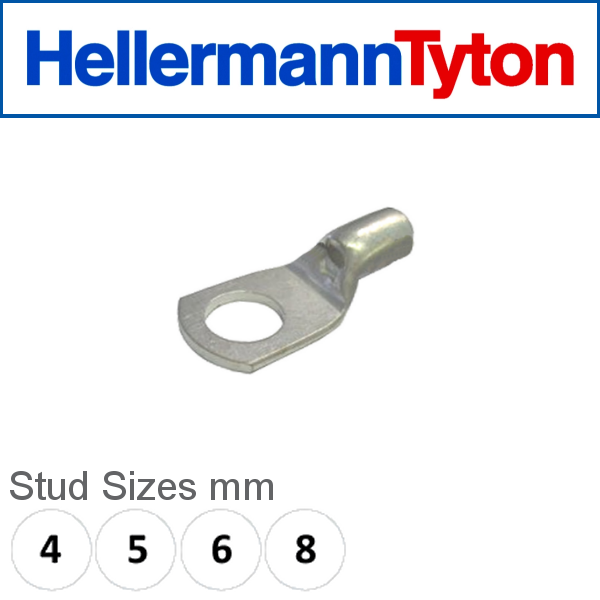

Copper Compression Lug 2.5mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
2.5mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL2.5-4 M4 2.5 8.0 8.0 19
CL2.5-5 M5 2.5 10.0 8.0 20
CL2.5-6 M6 2.5 10.0 8.0 20
CL2.5-8 M8 2.5 11.0 9.0 26



(CL2.5)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL2.5
Brand HellermannTyton
