2.5mm² Copper Splice Link Per Unit

CS2.5

$0.14
In Stock
Buy In Bulk & Save!
Buy 100 or more: Pay $0.13

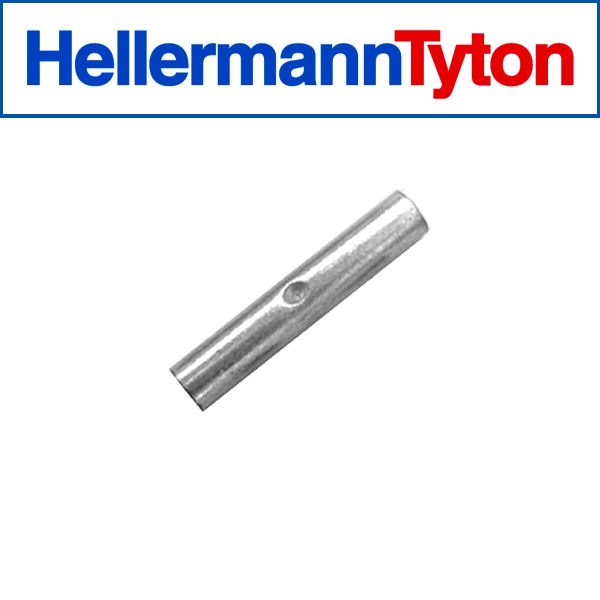

Copper Compression Link 2.5mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
2.5mm² Copper Links - All Dimensions mm
Part No. Ent ID Barrel L
CS2.5 2.5 22.2



(CS2.5)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CS2.5
Brand HellermannTyton
