25mm² Copper Lug M12 Per Unit

CL25-12

$0.85
In Stock

Stud Size
Buy In Bulk & Save!
Buy 50 or more: Pay $0.77

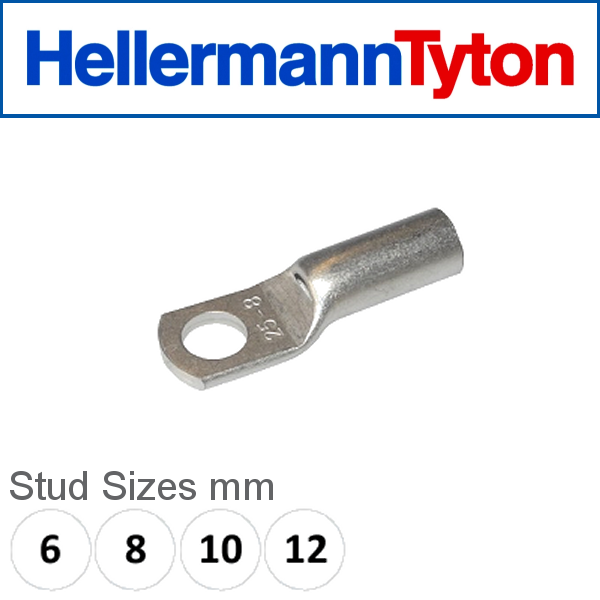

Copper Compression Lug 25mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
25mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL25-6 M6 7.1 13.5 21 41
CL25-8 M8 7.1 13.5 21 41
CL25-10 M10 7.1 16.0 21 44
CL25-12 M12 7.1 18.0 21 48



(CL25)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL25
Brand HellermannTyton
