3.2-1.6mm Diesel Resistant 1.2m Lengths

RSFR-DR3.2-1.2

$5.18
In Stock

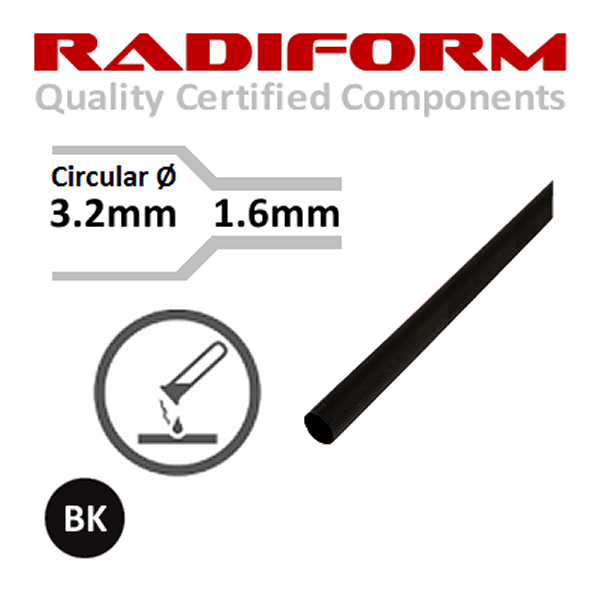

Product: 3.2mm ID to 1.6mm ID 1.2m Lengths
Heat Shrink – RSFR-DR Diesel Fuel, Chemical, and Abrasion Resistant Tubing

Applications:
Cable harnesses in vehicles, formulated for optimum high temperature and fluid resistance.

General:

  • Shrink ratio 2:1
  • Flame retarded and self extinguishing
  • Dielectric strength 15kV/mm
  • Resistance to chemical, diesel fuels, hydraulic fluids and lubricating oils
  • Operating temperature range -75°C to +150°C
  • Meets AMS-DTL-23053/1
All Dim mm
 Part Number
As Supplied After Recovery Applicable
Range
Inside Ø Inside Ø Wall
RSFR-DR3.2 3.2 ≤ 1.60 0.76 ± 0.15 1.1 ~ 3.0 Ø
RSFR-DR4.8 4.8 ≤ 2.40 0.84 ± 0.15 1.7 ~ 4.4 Ø
RSFR-DR6.4 6.4 ≤ 3.20 0.89 ± 0.15 1.3 ~ 6.1 Ø
RSFR-DR9.5 9.5 ≤ 4.80 1.02 ± 0.20 3.4 ~ 9.1 Ø
RSFR-DR12.7 12.7 ≤ 6.40 1.22 ± 0.20 4.4 ~ 12.2 Ø
RSFR-DR19.1 19.1 ≤ 9.50 1.45 ± 0.28 6.5 ~ 18.7 Ø
RSFR-DR25.4 25.4 ≤ 12.70 1.78 ± 0.28 8.8 ~ 24.8 Ø
RSFR-DR38.1 39.0 ≤ 19.00 2.41 ± 0.41 13.8 ~ 38.4 Ø
RSFR-DR50.8 52.0 ≤ 25.40 2.79 ± 0.41 17.3 ~ 51.5 Ø







(RSFR-DR3.2-1.2)

SKU RSFR-DR3.2-1.2
Brand Radiform
