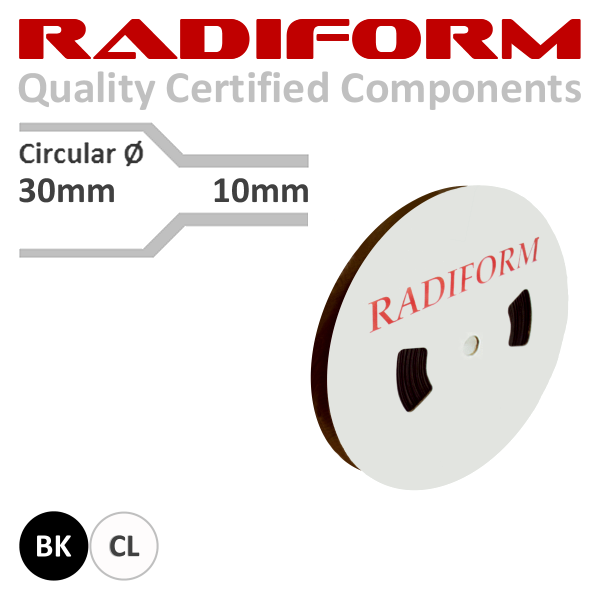

30-10mm RDW Black Heat Shrink 25m Reels

RDW30-BK-R

$282.04
In Stock

Colour
Packaging

Product: 30mm ID to 10mm ID 25m Reels
Heat Shrink – RDW Dual Wall Tube

Applications:
Provides permanent waterproof barrier & environmental seal for electrical connections
Used as an alternative to moulded parts and cable breakouts. High shrink ratio enables insulation of cables with connectors of various sizes.Suitable for use in telecommunication, industrial equipment, automotive and avionics applications.

General:

  • Shrink ratio 3:1
  • UL Listed File E523862 (Except Clear)
  • Flame retarded and self extinguishing (Except Clear)
  • Maximum working voltage 600V
  • Dielectric strength 15kV/mm
  • Resistance to chemical, copper corrosion and fungus
  • UV stabilised (Except Clear)
  • Operating temperature range -55°C to +85°C
  • RoHS compliance
Heat Shrink Tube Circular Dimensions
All Dim mm
 Part Number
As Supplied After Recovery Applicable
Range
Inside Ø Inside Ø Wall
RDW3 3.2 ≤ 1.00 0.95 ± 0.15 1.1 ~ 3.0 Ø
RDW4.8 4.8 ≤ 1.60 1.10 ± 0.15 1.7 ~ 4.4 Ø
RDW6 6.4 ≤ 2.20 1.20 ± 0.15 1.3 ~ 6.1 Ø
RDW9 9.5 ≤ 3.20 1.45 ± 0.20 3.4 ~ 9.1 Ø
RDW12 12.7 ≤ 4.20 1.70 ± 0.20 4.4 ~ 12.2 Ø
RDW18 19.1 ≤ 6.30 2.00 ± 0.20 6.5 ~ 18.7 Ø
RDW24 25.4 ≤ 8.50 2.10 ± 0.25 8.8 ~ 24.8 Ø
RDW39 39.0 ≤ 13.50 2.40 ± 0.25 13.8 ~ 38.4 Ø
RDW52 52.0 ≤ 17.00 2.70 ± 0.25 17.3 ~ 51.5 Ø



Heat Shrink Tube Lay Flat Dimensions
Part Number Lay Flat ID Part Number Lay Flat ID
RDW4.8 7.7mm RDW18 28mm
RDW6 10mm RDW24 37mm
RDW9 15mm RDW39 61mm
RDW12 18mm RDW52 80mm



Heat Shrink Part Numbers for Copper Lug and Link Barrel Insulation
Lug or Link to Suit Cable Size Heat Shrink Part Number
1.5mm² RDW4.8
2.5mm² RDW6
4mm² RDW6
6mm² RDW9
10mm² RDW9
16mm² RDW12
25mm² RDW12
35mm² RDW18
50mm² RDW18
70mm² RDW18
95mm² RDW24
120mm² RDW24
150mm² RDW24
185mm² RDW39
240mm² RDW39
300mm² RDW39
400mm² RDW39
500mm² RDW39
630mm² RDW52



Heat Shrink Part Numbers for Bus Bar Insulation
Width Thickness
3.2mm 4.8mm 6.4mm 9.5mm 12.7mm
12mm RDW12 RDW18
19mm RDW24 RDW24 RDW24 RDW24 RDW24
25mm RDW24 RDW24 RDW24
38mm RDW39 RDW39 RDW39 RDW39
51mm RDW52 RDW52 RDW52 RDW52 RDW52



(RDW30Reels)

SKU RDW30Reels
Brand RADIFORM
