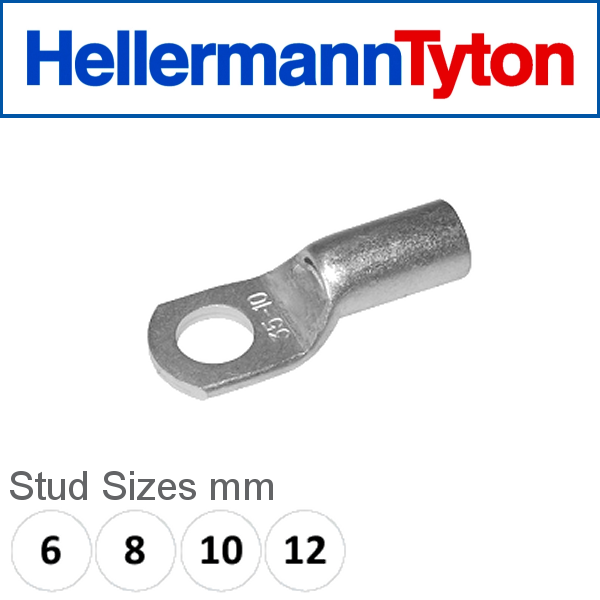

35mm² Copper Lug M12 Per Unit

CL35-12

$1.41
In Stock

Stud Size
Buy In Bulk & Save!
Buy 50 or more: Pay $1.27

Copper Compression Lug 35mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
35mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL35-6 M6 8.4 16 21 45
CL35-8 M8 8.4 16 21 45
CL35-10 M10 8.4 18 21 45
CL35-12 M12 8.4 20 22 51



(CL35)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL35
Brand HellermannTyton
