38mm Grommet IP67 Cable 20-26mm OD Pk25

RG1-38-25

$119.00
In Stock

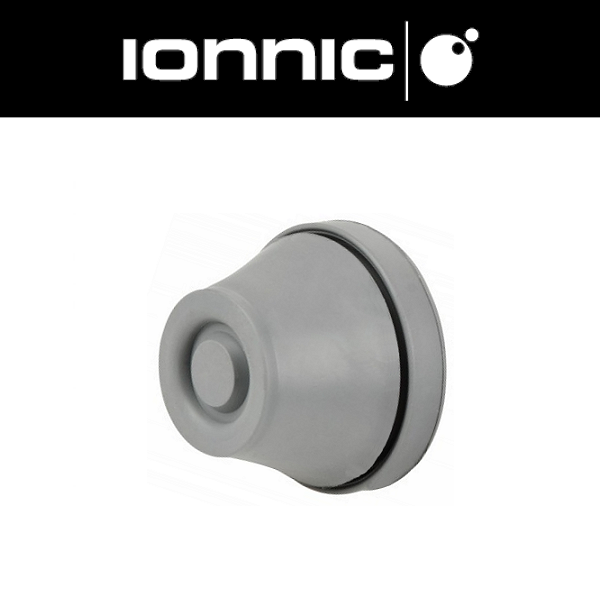

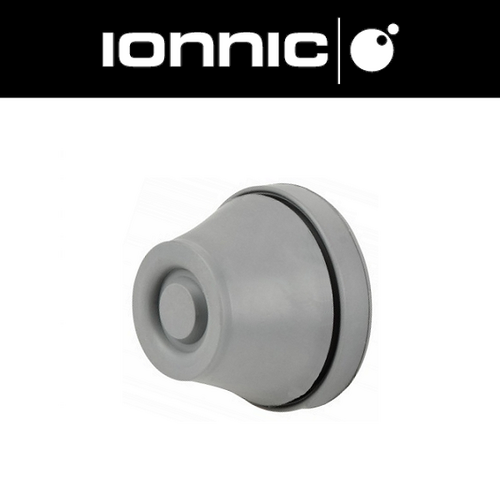

38mm Grommet IP67 Cable 20-26mm OD Pack of 25

Description:
The RG1 series is designed to create a waterproof seal for cable entry to enclosures or bulkheads. The one piece moulded EPDM rubber grommet provides quick and simple cable support and retention without the need for tools. Once properly installed it will provide a cable strain relief and seal out water, dust and fumes.

Features:

  • Cable entry seal to IP67
  • Acts as a strain relief
  • EPDM rubber is chemical resistant and halogen free
  • Panel thickness range 0.5mm to 4mm
  • Operating temperature range -30°C to +130°C
RG1 Series Dimensions
Part Number A Cable Ø B Cutout Ø C D
RG1-12 4-7mm 12.5mm 12.6mm 20mm
RG1-16 5-8mm 16mm 17.8mm 21mm
RG1-19 7-10mm 19mm 19.8mm 24mm
RG1-23 10-14mm 23mm 21.6mm 28mm
RG1-29 14-20mm 29mm 24.6mm 35mm
RG1-38 20-26mm 38mm 28.5mm 46mm
RG1-48 26-35mm 48mm 34.9mm 58mm




(RG1-38-25)

SKU RG1-38-25
Brand Ionnic
