4mm² Copper Lug M8 Per Unit

CL4-8

$0.19
In Stock

Stud Size
Buy In Bulk & Save!
Buy 100 or more: Pay $0.17

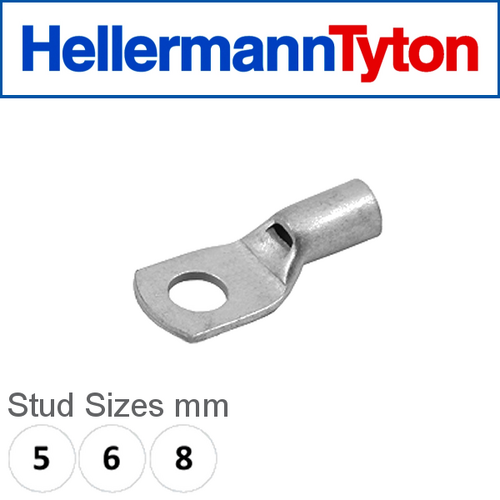

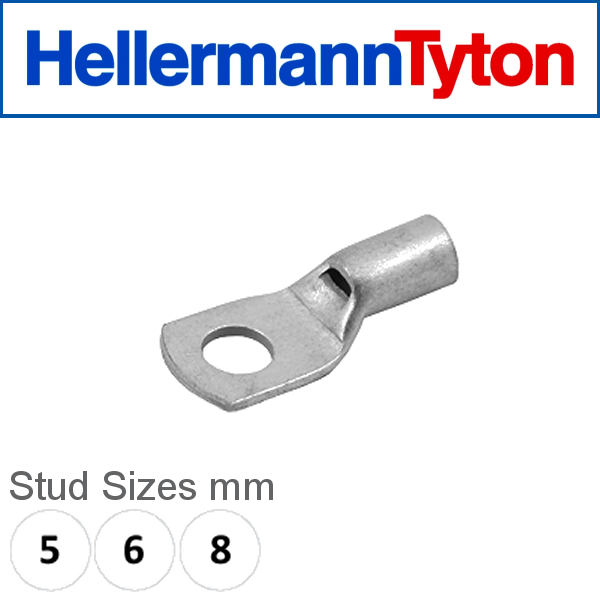

Copper Compression Lug 4mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
4mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL4-5 M5 3.3 10 9 22
CL4-6 M6 3.3 10 9 22
CL4-8 M8 3.3 12 9 26



(CL4)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL4
Brand HellermannTyton
