50mm² Bell Mouth Copper Lug M6 Per Unit

CL50-6BM

$1.73
In Stock

Stud Size
Buy In Bulk & Save!
Buy 50 or more: Pay $1.56

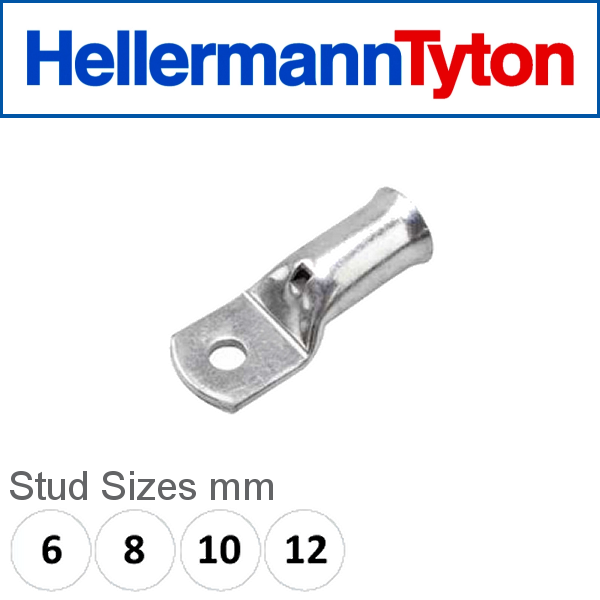

Copper Compression Lug Bell Mouth 50mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
50mm² Copper Lugs Bell Mouth - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL50-6BM M6 9.5 18 22 46
CL50-8BM M8 9.5 18 22 46
CL50-10BM M10 9.5 18 22 46
CL50-12BM M12 9.5 21 22 52



(CL50BM)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL50BM
Brand HellermannTyton
