50mm² Copper Lug M12 Per Unit

CL50-12

$1.50
In Stock

Stud Size
Buy In Bulk & Save!
Buy 50 or more: Pay $1.30

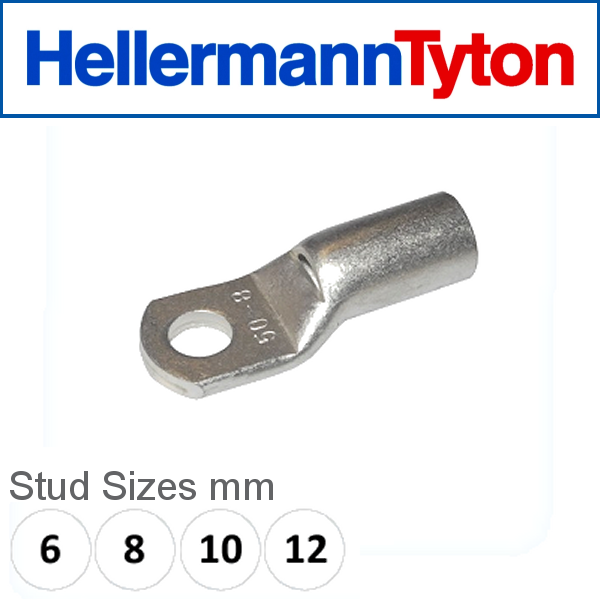

Copper Compression Lug 50mm²


Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
50mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL50-6 M6 9.5 18 22 46
CL50-8 M8 9.5 18 22 46
CL50-10 M10 9.5 18 22 46
CL50-12 M12 9.5 21 22 52



(CL50)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL50
Brand HellermannTyton
