6mm² Copper Lug M10 Per Unit

CL6-10

$0.24
In Stock

Stud Size
Buy In Bulk & Save!
Buy 100 or more: Pay $0.22

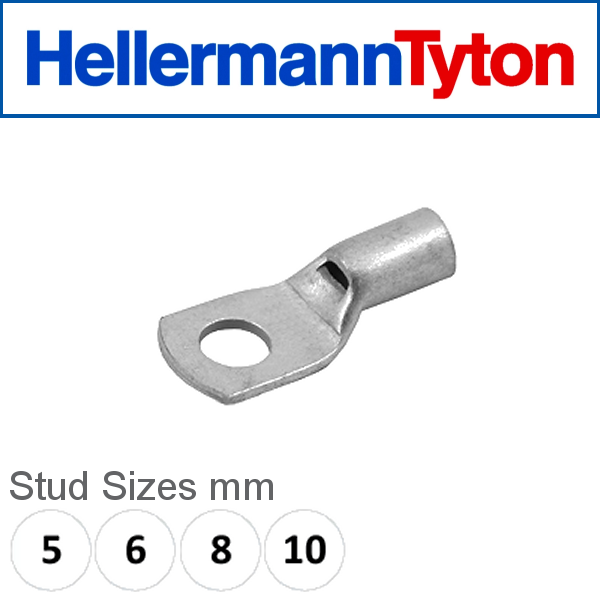

Copper Compression Lug 6mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
50mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL6-5 M5 3.8 10 10 23
CL6-6 M6 3.8 12 10 27
CL6-8 M8 3.8 12 10 27
CL6-10 M10 3.8 15 10 32



(CL6)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL6
Brand HellermannTyton
