70mm² Copper Lug M16 Per Unit

CL70-16

$2.36
In Stock

Stud Size
Buy In Bulk & Save!
Buy 25 or more: Pay $2.13

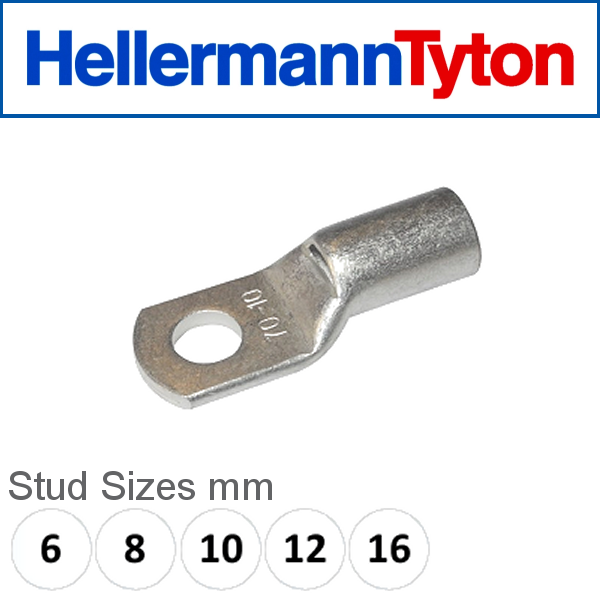

Copper Compression Lug 70mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
70mm² Copper Lugs - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL70-6 M6 11.3 21 24 54
CL70-8 M8 11.3 21 24 54
CL70-10 M10 11.3 21 24 54
CL70-12 M12 11.3 21 24 54
CL70-16 M16 11.3 26 24 61



(CL70)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL70
