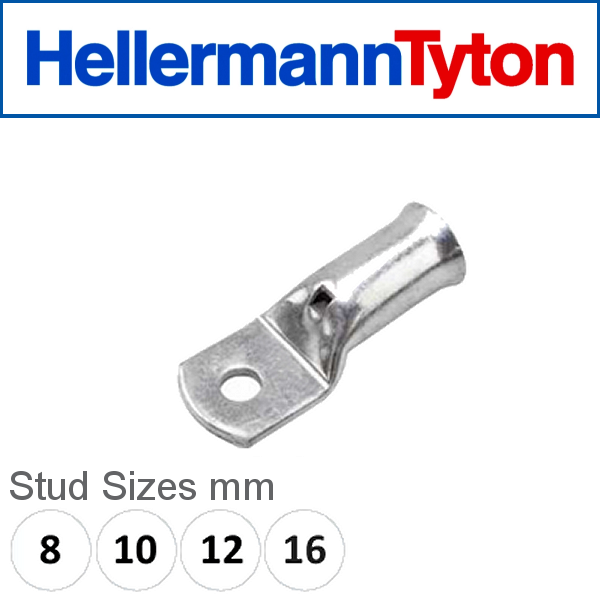

95mm² Bell Mouth Copper Lug M8 Per Unit

CL95-8BM

$3.63
In Stock

Stud Size
Buy In Bulk & Save!
Buy 25 or more: Pay $3.27

Copper Compression Lug Bell Mouth 95mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
95mm² Copper Lugs Bell Mouth - All Dimensions mm
Part No. Stud Ent ID Palm W Barrel L Overall L
CL95-8BM M8 13.5 25 27 60
CL95-10BM M10 13.5 25 27 60
CL95-12BM M12 13.5 25 27 60
CL95-16BM M16 13.5 28 27 62



(CL95BM)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CL95BM
Brand HellermannTyton
