95mm² Copper Splice Link Per Unit

CS95

$3.30
In Stock
Buy In Bulk & Save!
Buy 25 or more: Pay $2.97

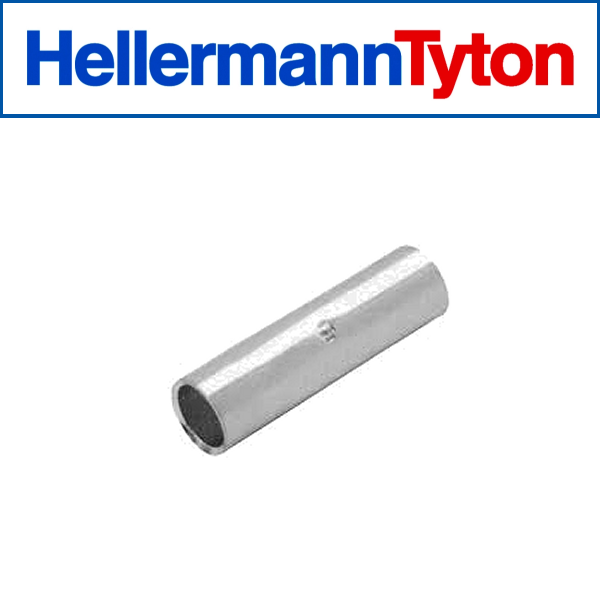

Copper Compression Link 95mm²

Features

  • Copper Grade C11000
  • 99.9% Copper Annealed and Tinned
  • Maximum Oxygen Content 30ppm
  • Operating Temperature Range -55°C to +155°C
  • Terminate with Australian standard compression tooling only
95mm² Copper Links - All Dimensions mm
Part No. Ent ID Barrel L
CS95 13.5 54



(CS95)

Material Property
Copper




99.9% Pure Copper
Oxygen 30ppm Maximum
Tensile Strength 205Mpa Minimum
Ductile Rating 40%
Final Metal State Fully Annealed
Electroplating 99.9% Pure Tin (Other Lead & Antimony)
Performance Conformant Standard AS/NZS4325 Part 1 :1995
Conductivity Total Conductivity 99.9% IACS
Resistance Total Resistance 1.72 micro-ohms per cm



SKU CS95
Brand HellermannTyton
