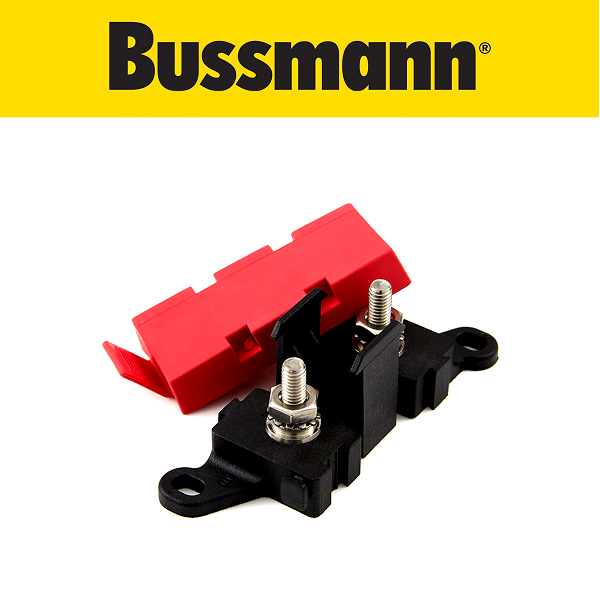

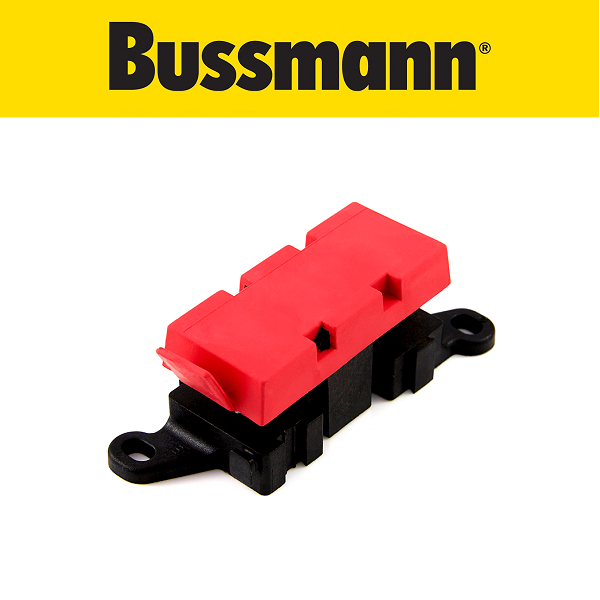

AMI Midi Fuse Holder Module

LMI-F-M

$14.00
In Stock

AMI Midi Modular Fuse Holder Surface Mount
A maximum 400A continuous combined current rating is based on the number of fuse positions, the current rating of installed fuses, and input and output wiring

Fuses are not included

Features:

  • LMI design allows up to a maximum of 7 modules per assembly
  • Housing material is black high temperature nylon UL rated 94V0
  • Cover is red EPDM
  • Operating temperature -40°C to 85°C
  • Common input bus bars click here for bus bars to suit

Dimensions

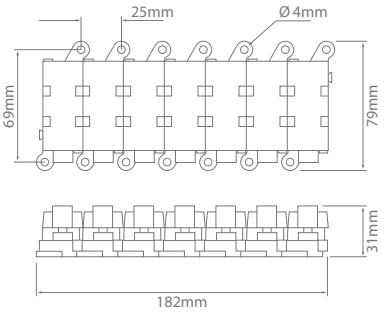

Dimensions for a 1 input and 6 fuse module assembly

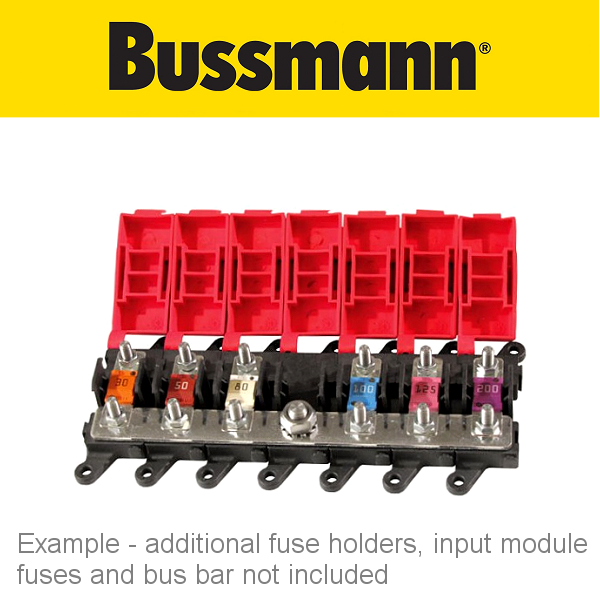

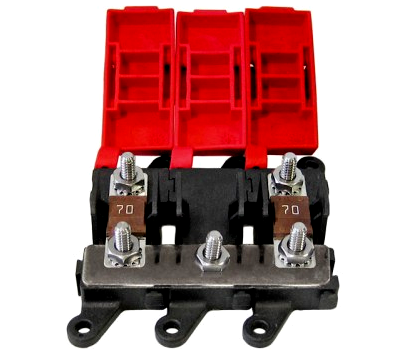

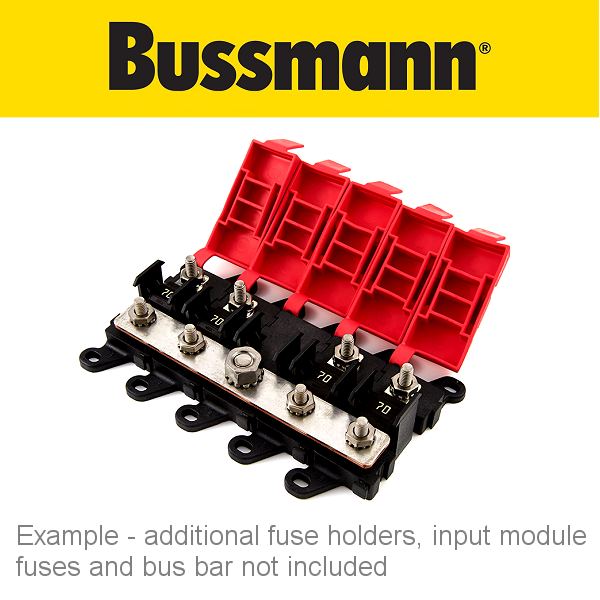

Images of a 1 input and 2 fuse modules with bus bar assembly



(LMI-F-M)

SKU LMI-F-M
Brand Bussmann
