Automotive Single Core 4.0mm² Black

AS12603BK

$27.44
In Stock

Choose Colour

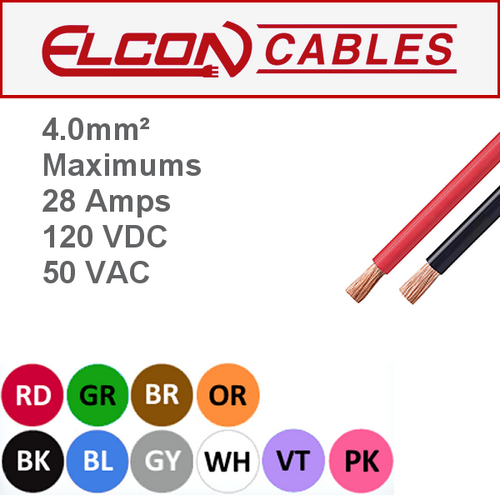

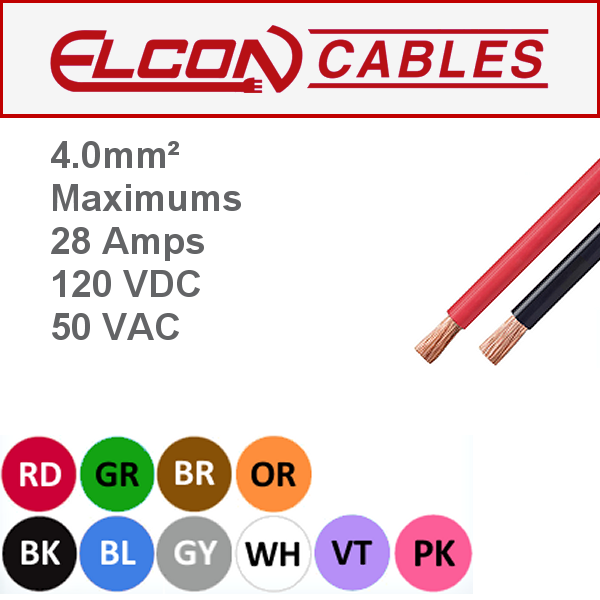

Product: Automotive Single Core Cable 4.0mm² 30m Reel, Rated to 28A.

Applications: Conductor for automotive electrical and low voltage DC electronics applications.

General:

  • 99.9% Oxygen Free High Conductivity (OFHC) Copper
  • Plain annealed copper conductors (PCW) to AS/NZS1125
  • Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
  • Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
  • UV Stabilised
  • ROHS Compliant
Automotive Single Core Dimensions

Part No.

Strands
/mmØ

Area
mm²

Equiv
mm²

Amps
+30°C

Insulation
Wall mm

Max DC Res
@+20°C mΩ/mt
Nom OD mm

Mass Kg/100m

AS11603 16/0.30 1.13 3.0 20A 0.5 16.49 2.38 1.4
AS12603 26/0.30 1.84 4.0 28A 0.5 10.15 2.70 2.1
AS14103 41/0.30 2.90 5.0 37A 0.6 6.43 3.40 3.3
AS16503 65/0.30 4.59 6.0 51A 0.6 4.06 3.95 4.9




(AS12603)

  • 99.9% Oxygen Free High Conductivity (OFHC) Copper
  • Plain annealed copper conductors (PCW) to AS/NZS1125
  • Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
  • Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
  • UV Stabilised
  • ROHS Compliant
SKU AS12603
Brand Elcon
