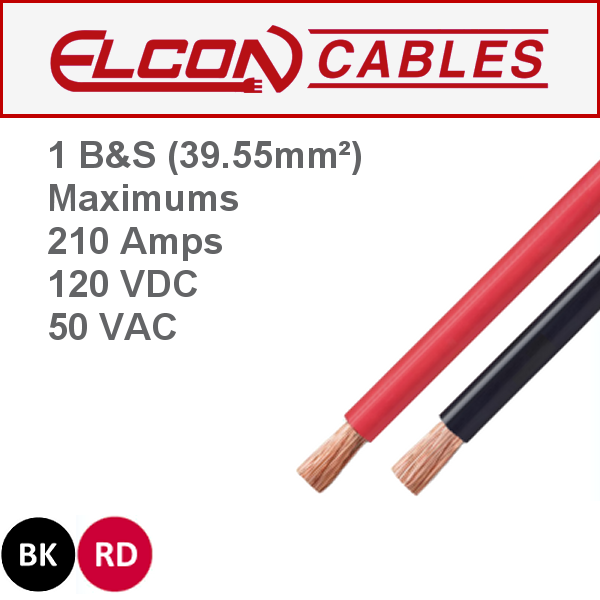

Battery and Starter Cable 1AWG 30m Rolls Black

ABS1BK

$507.99
In Stock

Colour

Product: Automotive Single Core Battery and Starter Cable 1 AWG 30m Reel, Rated to 210A.

Applications: Conductor for high current automotive electrical and DC electronics applications.

General:

  • 99.9% Oxygen Free High Conductivity (OFHC) Copper
  • Plain annealed copper conductors (PCW) to AS/NZS1125
  • Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
  • Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
  • UV Stabilised
  • ROHS Compliant
Automotive Single Core Dimensions

Part No.

Strands
/mmØ

Area
mm²

Amps
+30°C

Insulation Wall mm Max DC Res
@+20°C mΩ/mt
Nom OD mm

Mass Kg/100m

ABS8 112/0.30 7.92 74A 0.9 2.36 5.40 8.9
ABS6 189/0.30 13.36 103A 1.1 1.40 6.90 14.8
ABS4 287/0.30 20.25 135A 1.1 0.92 8.00 21.6
ABS3 364/0.30 25.70 170A 1.6 0.72 9.80 28.9
ABS2 455/0.30 32.15 190A 1.7 0.58 10.70 35.7
ABS1 560/0.30 39.55 210A 1.7 0.47 11.50 43.0
ABS0 700/0.30 49.45 246A 1.7 0.38 12.50 52.6
ABS00 910/0.30 64.30 292A 1.7 0.29 13.50 66.9
ABS000 1204/0.30 85.00 335A 2.0 0.22 16.00 88.9




(ABS1)

SKU ABS1
Brand Elcon
