Heat Shrink Cable Gland 6 to 17mm Cable Range

HSG-2

$22.00
In Stock

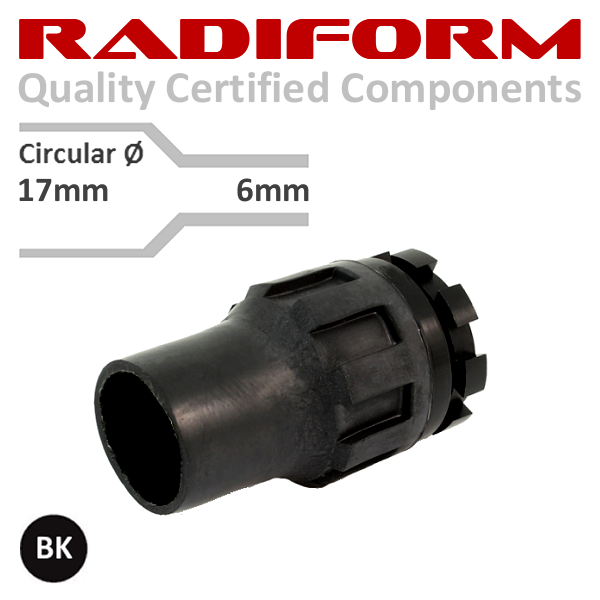

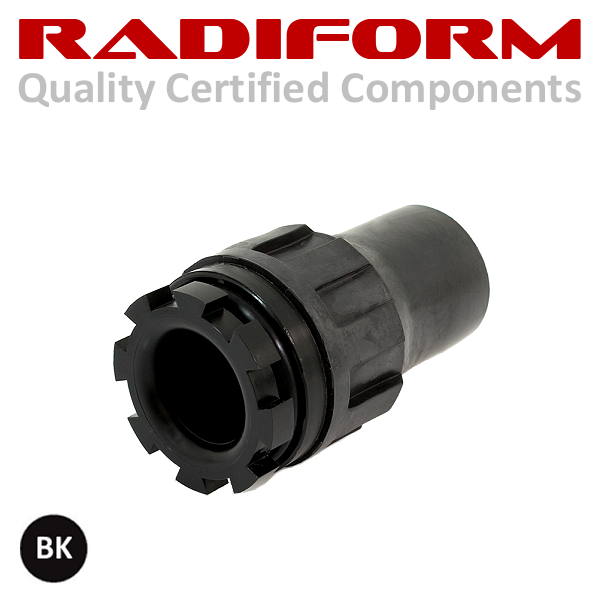

Heat Shrink Cable Gland - Cable Diameter Range 6 to 17mm - Mounting Hole Ø 25mm

Description:

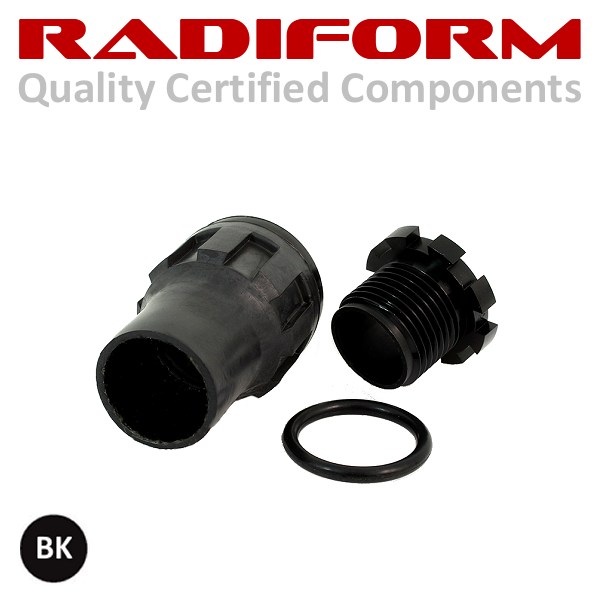

The GSHG series is designed to create a waterproof seal for cable entry to enclosures or bulkheads. The 3 part assembly consists of a nylon nut, an 'O' ring and a preformed cross linked polyolefin heat shink moulding, partly lined with hot melt adhesive. Once properly installed it will provide a robust, impact resistant cable strain relief and seal out water, dust and fumes

Features:

  • Cable entry seal
  • Pressure diferential seal up to 25psi
  • Secure and robust cable termination
  • Insulation rated to 600V
  • Di-electric strength 2mm wall 12kV/mm
  • UV Resistant

GHSG Dimensions
Part Number B Supplied ID Recovered ID Suggested Range
GHSG-1 70mm 25mm 13mm 4.3mm 5-10mm
GHSG-2 70mm 25mm 19mm 5.5mm 6-17mm
GHSG-3 95mm 35mm 29mm 12.5mm 14-25mm
GHSG-4 116mm 51mm 39mm 19.0mm 20-37mm
GHSG-5 178mm 89mm 70mm 35.5mm 37-67mm

Heat Shrink Gland Dimensions


(HSG-2)



GHSG Testing Method Requirement / Result
Tensile Strength ASTM-D-638 12 N/mm²
Tensile Ultimate Elongation ASTM-D-638 350% min
Density ASTM-D-792 31.0+/- 0.2gm/cm³
Harness ASTM-D-2240 45 (+/-10) Shore D
Specific Gravity ASTM-D-792 1.4
Longitudinal Change ASTM-D-638 -10% max
Continuous Operating Temperature IEC 216 - 40°C to +110°C
Heat Shock at 250°C for 30mins ESI 09-11 No dripping, cracking or flowing
Dielectric Strength (2mm  wall) ASTM-D-149 12kV/mm min
Dielectric Constant ASTM-D-150 5.0 Max
Volume Resistance ASTM-D-257 1012 Ohm/cm min



SKU HSG-2
Brand Radiform
