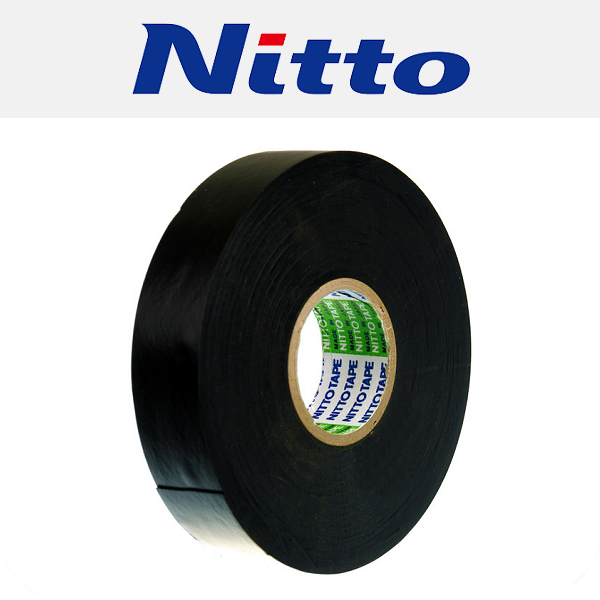

Nitto Self fusing Tape .5mm x 19mm x 10m

No.15

$13.46
In Stock
Buy In Bulk & Save!
Buy 10 or more: Pay $11.67

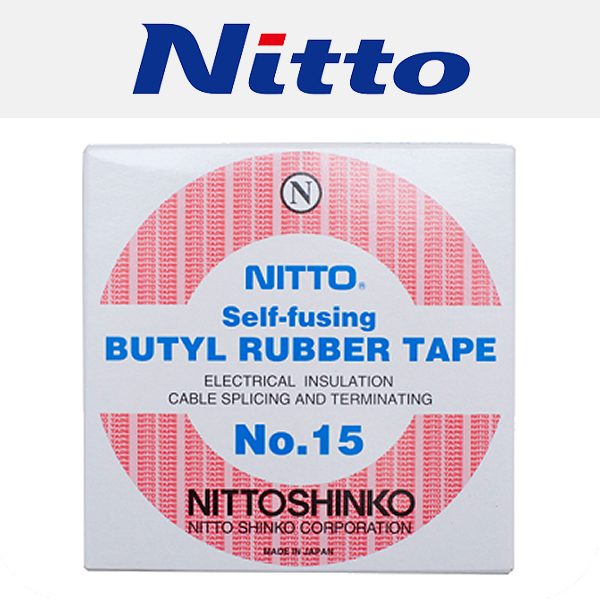

Nitto Butyl Rubber Self fusing Tape .5mmx19mmx10m

Product Description
Nitto 15 is a self-fusing, butyl rubber tape, widely used for the electrical insulation, protection, sealing, splicing and termination of 6 to 22 kV cables. Nitto has eliminated the conventional need for a liner thereby reducing the time required to apply the tape.

Nitto 15 has an excellent volume resistivity, a high breakdown voltage and a low dissipation factor. It is totally resistant to moisture, water and chemicals.Nitto 15 offers excellent electrical insulation, workability and weather protection. The product has a superior weatherability and ozone resistance and because of the linerless system a very short application time. It completely self-amalgamates in two hours.

Application
Nitto 15 can be used for termination, splicing and corrosion protection of cables. Also insulation and protection of lead shielded cables is possible. The product is used for its waterproof sealing and corrosion protection of cables in marine and off-shore environments.

Property Unit
Application Temperature -10°C to +40°C
Operating Temperature Range -40°C to +65°C
Maximum Operating Temperature +100°C Short Period
Self-amalgamating Property Nitto Tested
Elongation 180% 5min Holding Not Amalgamated
Elongation 180% 60min 70% Amalgamated
Elongation 180% 24hrs 100% Amalgamated



(No.15)

SKU No.15
Brand Nitto Denko
