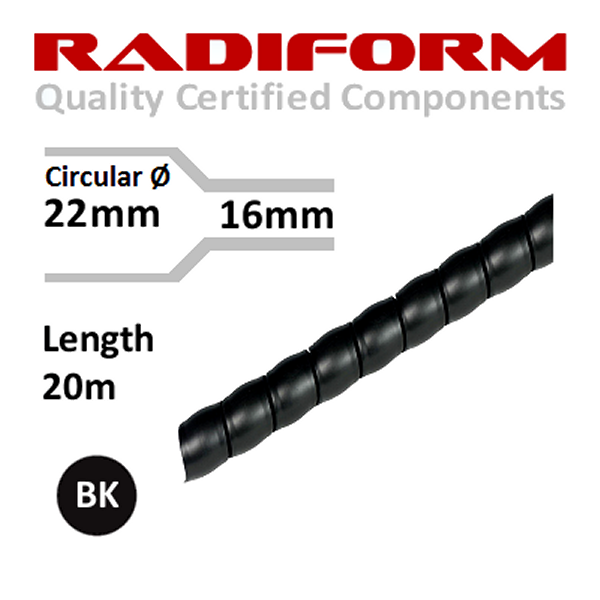

Spiral Wrap 16 to 22mm ID Black 20m Spool

RMSW20-20

$46.00
Sold Out

Spiral Wrap 16 to 22mm ID Black 20m Spool

Australian manufactured, high density polyethylene spiral sheathing designed for heavy duty protection in a wide range of industrial applications

Spiral Wrap is designed for use in applications requiring protection of electrical cable, hydraulic hose, air and gas lines. The excellent durability of the wrap provides enhanced impact and abrasion resistance, safeguarding the integrity of the contents.

Radiform Spiral wrap has excellent chemical resistance, good UV stability, a long fatigue life and the ability to withstand high and low temperature extremes.

Fitting Guildlines

Part Number Cable / Hose O.D. Range
RMSW16 12mm to 17mm
RMSW20 16mm to 22mm
RMSW25 20mm to 28mm
RMSW32 24mm to 33mm
RMSW40 32mm to 42mm
RMSW50 40mm to 54mm
RMSW60 52mm to 65mm



Length requirement guideline
In applications requiring a tight fit, Spiral wrap will expand to fit the hose, tube or cable. Extra length of spiral wrap will be needed to recover the shortfall.
This additional length can be estimated as follows:
Actual Length Required = ( Hose O.D. ÷ Spiral Wrap I.D. ) x Hose Length



Dimensions

Part No. I.D mm Wall mm Width mm
RMSW16 12 +/-0.5 2.25 +/-0.25 9.5 +/-0.5
RMSW20 15 +/-0.5 2.5 +/-0.25 14.5 +/-0.5
RMSW25 19 +/-0.5 2.75 +/-0.25 17.5 +/-0.5
RMSW32 23 +/-0.5 3.5 +/-0.25 22 +/-0.5
RMSW40 30.5 +/-0.5 4.25 +/-0.25 29 +/-1.0
RMSW50 38 +/-0.5 4.25 +/-0.25 35 +/-1.0
RMSW60 47 +/-0.5 5.5 +/-0.25 35 +/-1.0
















(RMSW20-20)

SKU RMSW20-20
Brand Radiform
