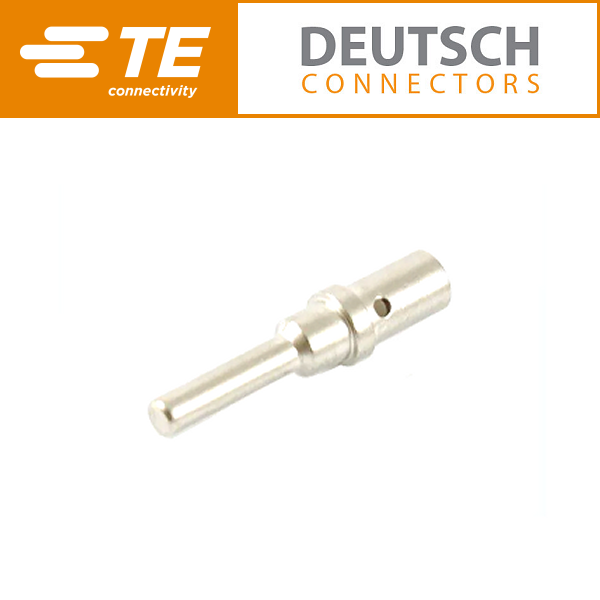

Deutsch Pin Contact #12 Ni. 2.0 to 3.0mm²

0460-204-12141

$0.88
In Stock

Deutsch
Male high-quality crimp contacts are for use with DTP series sealed connectors



Features

  • Nickel plated copper crimp pin contact

  • Compatible with a wide range of Deutsch sealed connectors

  • Radial Crimp Type



(0460-204-12141)

Deutsch DTP Series Connectors
Property Unit
Housings Thermoplastic
Seals Silicone Rubber
Wedge Locks Thermoplastic
Contacts Ni Plated Cu Alloy
Dielectric Withstanding Voltage 1500VAC
Current Rating ≥25A
ARC Resistance ASTM-D-495
Submersion & Dust IP68
Vibration 20g's 10Hz to 2kHz Pass
Operating Temperatures at 13A - 55°C to +125°C
Contact Retention 33Nm
Insulation Resistance @ 25°C 1000 m
Millivolt Drop @ 25A 100mV



SKU 0460-204-12141
Brand Deutsch
