DTP04-2P 2 Way Receptacle & Orange Wedge

DTP04-2P-W

$7.92
In Stock
Buy In Bulk & Save!
Buy 10 or more: Pay $7.13

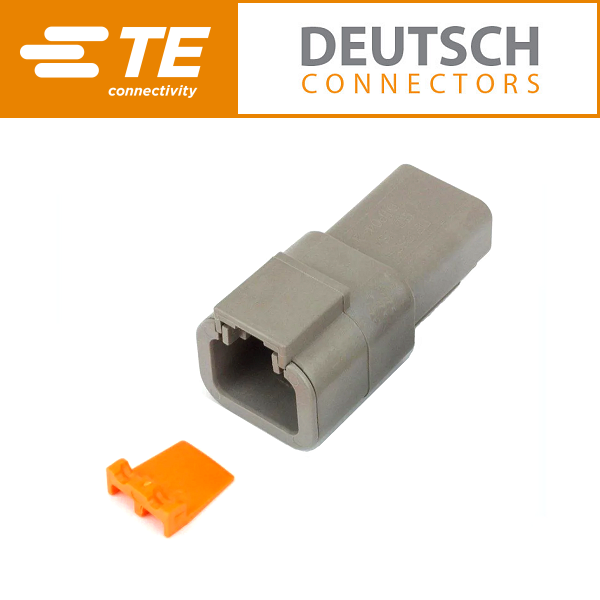

Deutsch DTP Series 2 way receptacle supplied with a orange wedge - Contacts not included

Applications
Versatile and reliable, DTP connectors are ideal for automotive applications

Features

  • Wire-to-Wire Connection
  • Integrated Locking Mechanism
  • Sealed to IP68 (When all contacts populated and connectors are mated)
  • Operating Temperature of -55°C to +125°C

Number of
Contacts
DTP Plug DTP Receptacle
A B C D E F
2 34.65mm 18.06mm 18.59mm 47.27mm 22.07mm 18.59mm
4 34.65mm 24.38mm 22.05mm 47.27mm 27.15mm 22.05mm



(DTP04-2P-W)

Deutsch DTP Series Connectors
Property Unit
Housings Thermoplastic
Seals Silicone Rubber
Wedge Locks Thermoplastic
Contacts Ni Plated Cu Alloy
Dielectric Withstanding Voltage 1500VAC
Current Rating ≥25A
ARC Resistance ASTM-D-495
Submersion & Dust IP68
Vibration 20g's 10Hz to 2kHz Pass
Operating Temperatures at 13A - 55°C to +125°C
Contact Retention 33Nm
Insulation Resistance @ 25°C 1000 m
Millivolt Drop @ 25A 100mV



SKU DTP04-2P-W
Brand Deutsch
